Introduction

1,Printing material: rigid can body

2,Can body diameter range: 60-90mm;

3,Can body height range: 50-250mm

4,Image height: ≤220mm

5,Number of colors: 6 colors (KCMY+W+gloss varnish)

6,Production capacity: 60-70 cans/minute

7,Multi-color overlay accuracy: ±0.01mm

8,The printing resolution supports 600dpi/900dpi/1200dpi

9,Full servo motor, smooth movement, fast speed (movement and positioning time per station < 0.5s), high precision (6-color register accuracy up to ±0.01mm).

10,Imported PLC control system ensures stable operation and long service life.

11,The high-speed robotic arm performs loading and unloading operations, with no human supervision throughout the entire process.

12,The configuration is flexible, and the number of workstations can be adjusted according to actual needs.

13,It can be equipped with different functional modules such as positioning and detection.

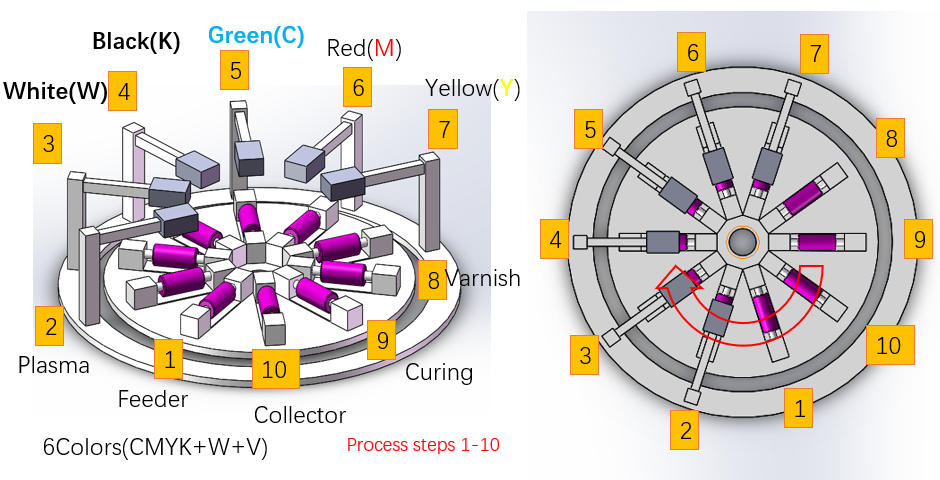

Brief explanation

1,First, based on the simple working principle of a single workstation,

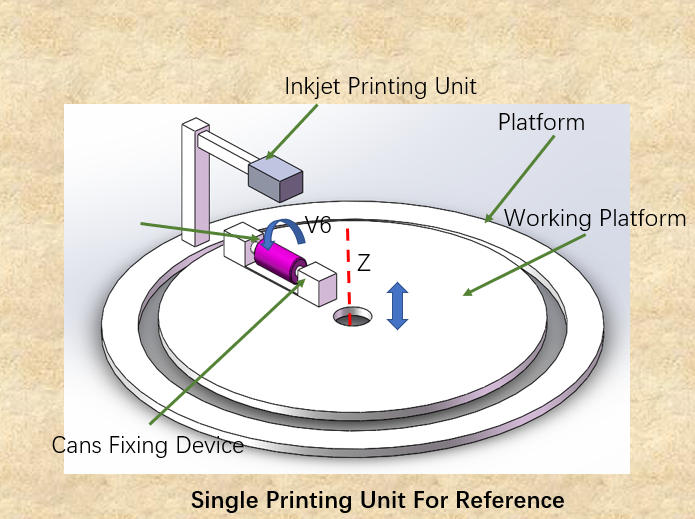

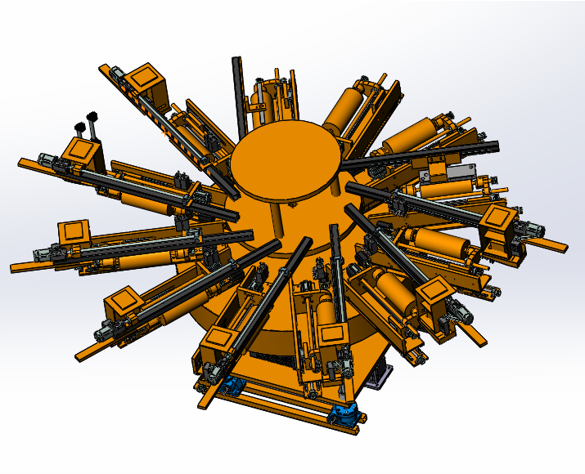

As shown in the figure, the workpiece installation platform is a circular disc, arranged along the diameter

2,Place the workpiece. In the same diameter direction, set up an oil above

Ink nozzle mechanism. Drive the clamping device to rotate at V6 speed,

3,Drive the workpiece to rotate, while the ink nozzle ejects ink according to a specific algorithm,Complete the printing of colors.

It should be noted that

1: This equipment adopts a CMYK color mixing system, and each ink nozzle mechanism only prints one color.

2: The working platform can rotate around the Z axis, with the direction and speed of rotation and

The starting position is controllable. The workpiece rotates along with the platform, and the ink is sprayed

The head mechanism does not rotate with the platform.

3: The entire equipment is enclosed and has a closable shell.

4: When the work platform is lifting/rotating, the equipment base remains stationary.

5: Both the drive clamping device's rotating shaft and the clamping mechanism can be independently raised and lowered,

Thus, it can be applied to workpieces of different shapes such as cylinders, cones, and spheres.
