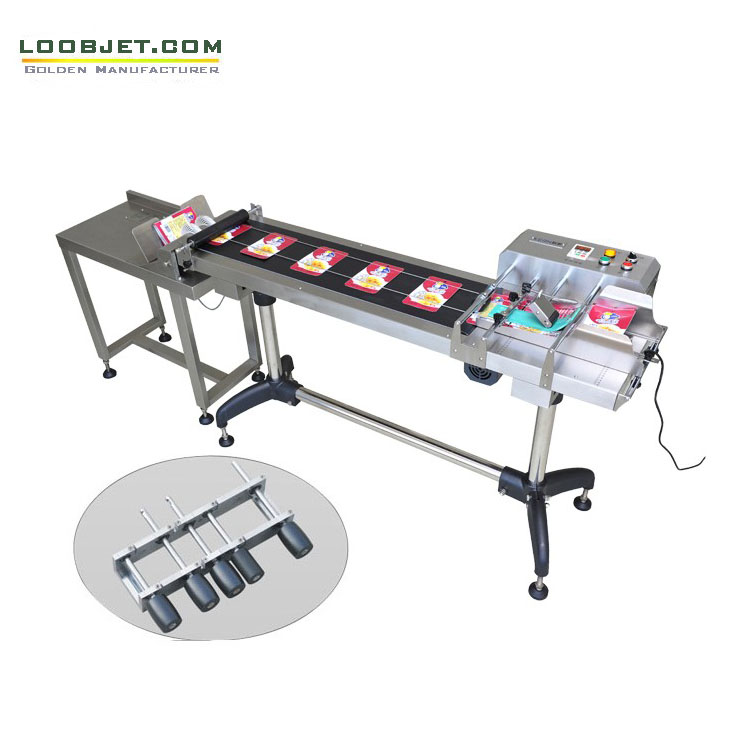

Friction Paging Machine
Specifications
Paging mode:friction type
Separate width:70-400mm or OEM accepted.
Separate length:60-320mm
Separate thickness:0.02-3mm
Power:200w voltage:220V
Speed regulation:variable frequency+electronic stepless speed
Outside size:1375×400×1150mm
Standard type (Bigger size for option)
Product | Friction paging machine |
Model | VDG400 |
Power | AC220V-50HZ(Be sure to connect the ground line) 250W(or OEM to 90W 120W 220W 370W) |
Inner Belt Width | 60mm |
Materials Width | 70-410mm |
Speed | 10-35m/min or 30-115m/min you can choose. |
Materials Length | 50-320mm |
Materials Thickness | 0.02-5mm |
Conveyor Belt Width | 350mm |
Conveyor Belt Length | 1000mm (or OEM to 1500mm you can choose) |
Size | 1500*630*900mm |
Ability | Most Stable |
Speed Control | VVVF vector type |
Power Protection | AC whole socket with fuse |
Surface Process | Sublight treatment |
Machines Material | S.S Steel |
Holder | Adjustable holder |
Size OEM | Accepted |
Applications
Packing Bags: PE bags, paper box, paper tape, label, paper sheet and etc.
Cards: IC cards, IP cards and etc.
