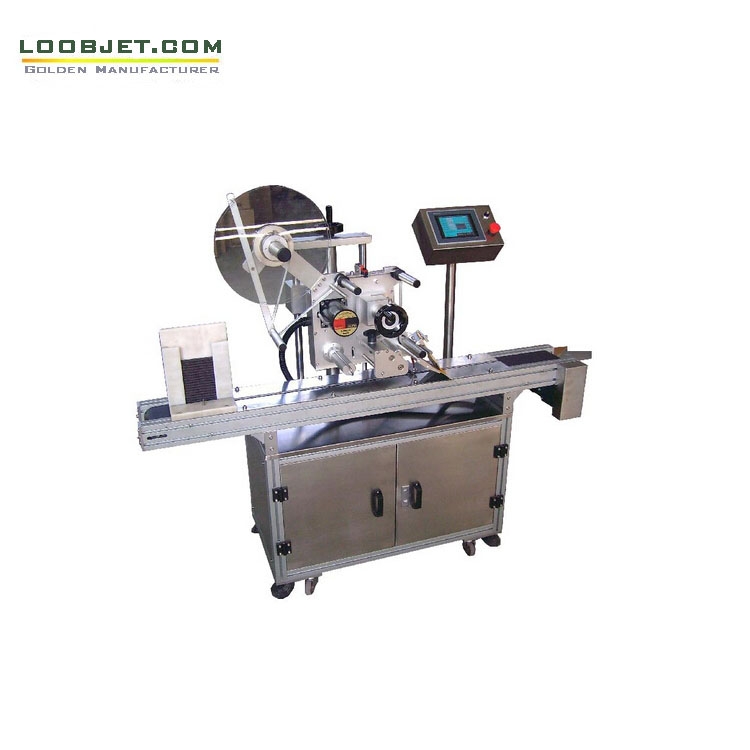

Full automatic horizontal type labeling machine Advantages

Top labeling machine adapt with Mitsubishi PLC control, Omron and LEUZE sensors, Mitsubishi Servo motor or delta servo motor. It is Easy control and operation, working stably and High speed and accuracy. Automatic warning on failures, no bottle no labeling

1.PLC CONTROL, Automatically check the length of labels

2.Equipped with warning device of insufficient labels, broken labels

3.No bottle, no labeling

4.No labels , no labeling and automatic warning

5.No Ribbon, automatic warning

6.Servo motor control, stable labeling.

Full automatic horizontal type labeling machine specification

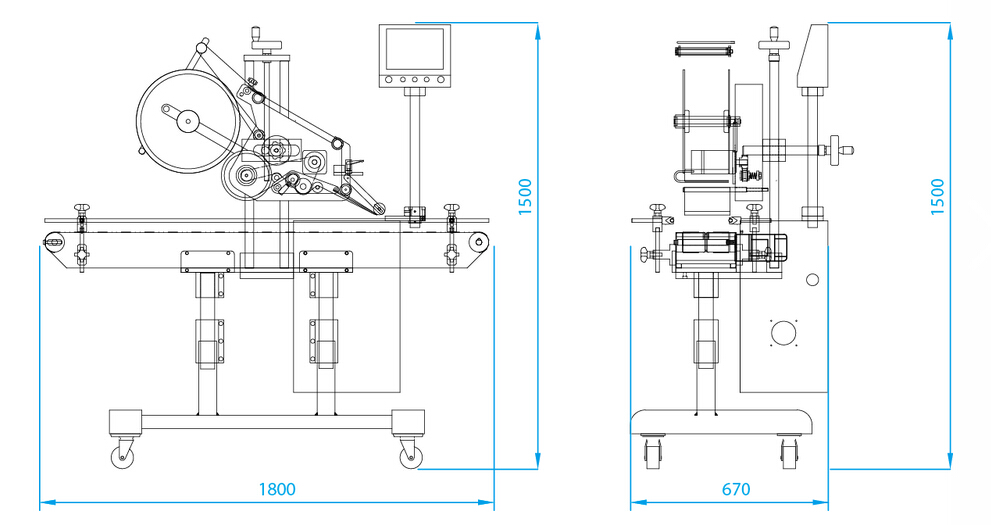

Machine size（L*W*H）1800*700*1500 mm

Labeling speed : 30~450 pics/min

Object height : 25~95mm

Bottle’s inner diameter: 12~24 mm

Label height :20~90 mm

Label length : 25~80 mm

Labeling accuracy : ±0.5mm

Scroll inner diameter : 76 mm

Scroll outer diameter : 420 mm

Power supply : 220V 50/60HZ   31.5KW
