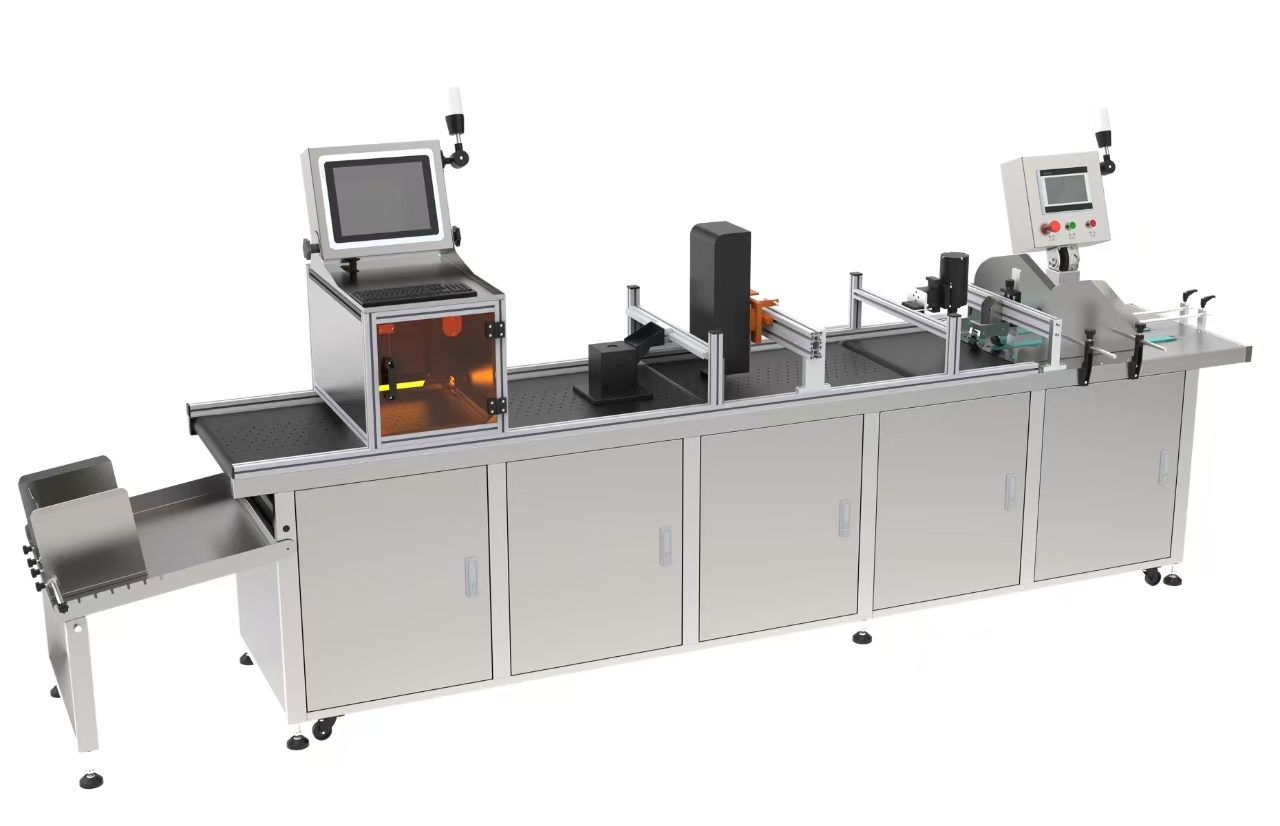

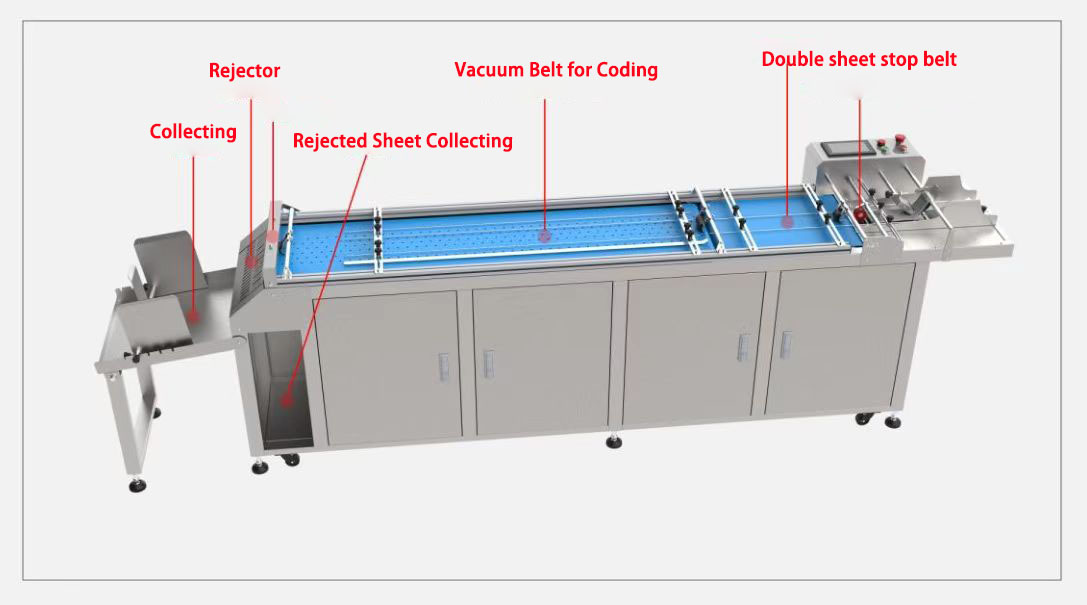

Overview of paging system

1. Paging: Forming a single sheet of stacked products through page headers and transferring them to the next workstation for coding, thereby reducing lightweight manual labor greatly improves production efficiency and coding accuracy.

2. Duplicate detection: Due to the physical characteristics of the product, there may be a probability of overlap (duplicate) during the splitting process when passing through the re inspection device workstation, an alarm will be triggered to stop the machine. Visual inspection is required for coding identification, and it is necessary to perform weight distribution inspection. If there is a complete duplication, the coding will only be printed on the first material on top, and visual inspection will not be able to detect the product on the bottom, resulting in missed spraying and printing.

3. Material shortage shutdown: Set the value according to our operating habits, in seconds. The paging head will stop independently when there is no material idle, to prevent unnecessary wear of the rubber pressure plate and paging toothed belt. We can also click the red stop button or the paging start stop button on the screen when collecting products at the back end, which can also prevent wear of vulnerable parts

4. Counting: Set the numerical value according to the user's required quantity. Accumulating the product count to the set value through the electric eye sensor will trigger an independent shutdown alarm. The cumulative quantity refers to the total accumulated quantity, which can also be reset by clicking the "Accumulate Reset" button on the screen.

5. Identification: Can be matched with small character coding machines, laser machines, labeling machines UV PIJ、 For high-resolution and other identification equipment, we will make corresponding choices based on the user's printing information, speed meter, printing height, product flatness and other needs. For example, the color of the conveyor belt surface, blue conveyor belt surface is suitable for laser machine matching, dark green conveyor belt surface is suitable for inkjet matching, laser machine needs to be equipped with laser pressure wheel, small character inkjet printer needs to be equipped with a digital display bracket for fixed adjustment of the print head, high-resolution needs to be equipped with an aluminum profile gantry bracket, and for products with relatively high flatness, we will add two short circular pressure strips at the back end of the conveyor belt surface for more precision

Quasi flipping board removal

6. Removal method: Flip board removal, determined by user diversity, can accurately remove any form of cross irregularity detected, with fast response time

7. Collection: The feeding wheel can move freely according to the size of the paginated items, and is conveyed in a fish scale style, which is more conducive to neat feeding in the future (optional function)

Standard machine equipment parameter description

1. Paging section

Whole machine power supply voltage: AC220V-50HZ

Page re check driver power: 160W

Page width: 80-320mm

Page length: 50-360mm

Page stability speed: 40-100m/min

Speed regulation method: Variable frequency speed regulation (Schneider)

2. Spray code detection section

Conveyor belt motor: 200W

Spray code conveying drive power: 200W

Effective width of inkjet conveyor belt: 350mm material: PU

Effective length of inkjet conveyor belt: 1450mm Material: PU

Effective adsorption surface length of inkjet conveyor belt: 1250mm

Speed regulation method: Variable frequency speed regulation (Schneider)

Adsorption method: Axial flow fan

Sealing material: Acrylic semi transparent anti glare

Rack material: stainless steel, aluminum profile

3. Remove segment

Removal method: Optional flip plate removal/air blowing removal (depending on the characteristics of the sample)

Drive mode: Cylinder (Yadeke) control solenoid valve 24V (SMC)

4. Electrical control system

PLC： Xinjie XD3 series

Touch screen: Kunlun Tongtai TPC series 7-inch, multi product parameter memory function

Air switch: Schneider

DC power supply: Mingwei
