The mobile inkjet coding platform for blister machines stands out with its outstanding flexibility, high efficiency and reliable performance, perfectly adapting to the needs of the packaging industry, especially the pharmaceutical, food and cosmetics sectors. Unlike fixed-installed coding systems, its mobile design allows for easy positioning and adjustment to various blister machine models, eliminating the need for complex modifications to existing production lines. This not only saves time and labor costs but also enhances the adaptability of production lines to different product specifications.

Equipped with high-resolution piezo inkjet technology, the platform ensures sharp, high-contrast coding on blister packs made of various materials, including PVC, PET, aluminum and plastic films. The specialized UV inks provide excellent adhesion, are wear-resistant and UV-stable, and meet strict international standards for hygiene and packaging—critical requirements for the pharmaceutical and food industries where product traceability and safety are paramount.

The platform supports rapid coding of variable data, such as batch numbers, serial numbers, QR codes, barcodes and expiration dates, at a speed of up to 200 blisters per minute. It features low maintenance, with a stable negative pressure ink system and an internal ink circulation that prevents nozzle clogging and extends the equipment’s service life. Additionally, it can be seamlessly integrated into existing production control systems, reducing downtime and significantly improving the overall efficiency of blister packaging production.

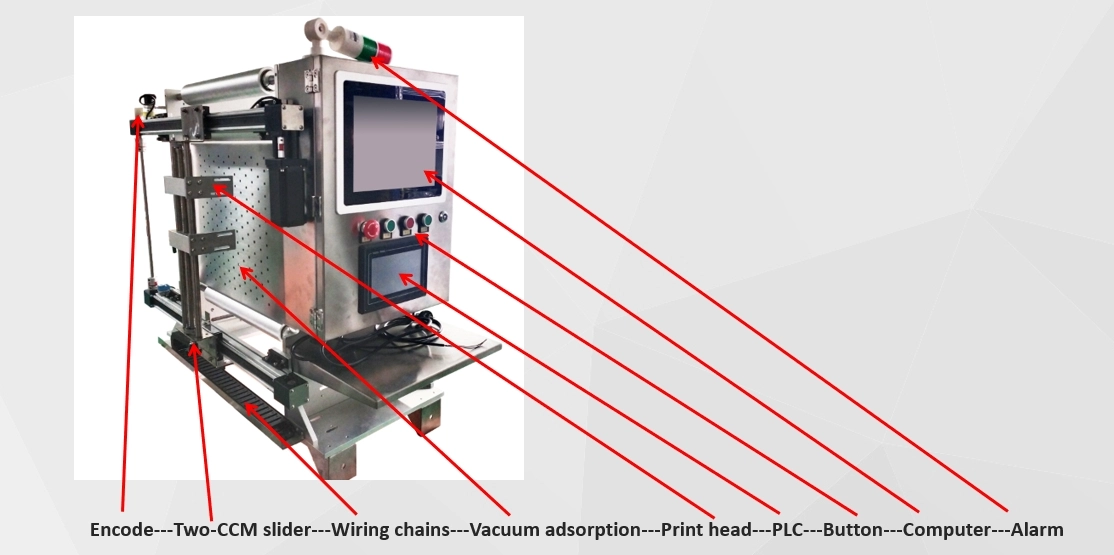

1.Equipped with a PLC control system: For convenient adjustment of parameters such as printing speed and position;

2.Equipped with CCM slide rail modules: Dual CCM modules for non-destructive and low noise operation;

3.Equipped with a film adjustment mechanism: Convenient for adjusting the printing position;

4.Equipped with tank chain: Used for mobile cable storage, safe, convenient, and aesthetically pleasing;

5.Equipped with vacuum adsorption: Used to stabilize material adsorption and facilitate more reliable printing;

6.Equipped with an industrial computer: Convenient for printing information editing, printing parameter adjustment, and expandable variable code printing in the future;

7.Equipped with high-end inkjet printer: Fast inkjet printing speed and more convenient operation with specialized software; Can be extended for later use;

8.Equipped with embedded computer electrical box: Used for installing electrical and computer;CNC processing technology for the entire machine frame: The entire machine is processed with CNC aluminum parts, which is beautiful and generous, sturdy and durable;

9.Equipped with high-precision CNC aluminum rollers: All rollers adopt CNC aluminum roller processing technology;
