Wooden Pallet Digital Logo Marking Machine

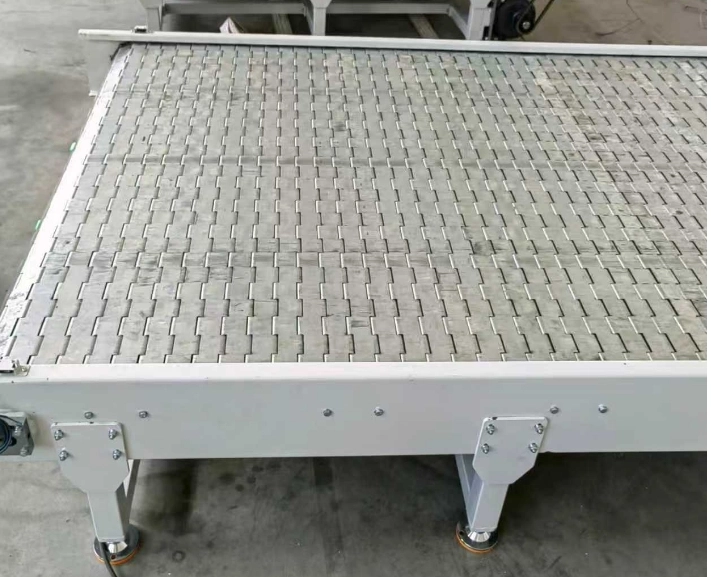

Design:54mm printing height,Black and yellow two colors printing,Or Full colors Printing.UV one pass,speed 20-30m/min,Side printing.Put pallets by hand.Stable ink supply must needed.Metal conveyor belt about 3000mm length.Match your OEM pallets size and weight.
UV digital marking inkjet technology offers unparalleled advantages for wooden pallet identification, addressing the unique challenges of wood substrates while meeting the high demands of logistics, warehousing and supply chain management. Unlike traditional marking methods such as stamping or labeling, UV digital inkjet delivers precise, durable and high-contrast marks that adhere firmly to various wood types, including pine, oak and plywood, even on rough or uneven surfaces.
The UV-curable inks used in this technology dry instantly upon exposure to UV light, eliminating smudging and ensuring immediate handling of marked pallets, which significantly boosts production efficiency. These inks are highly resistant to water, moisture, abrasion and harsh environmental conditions, maintaining legibility even during long-term outdoor storage, transportation or frequent handling—critical for pallet traceability across global supply chains.
Equipped with high-resolution piezo technology, the system produces clear variable data such as batch numbers, serial numbers, barcodes, QR codes and company logos, supporting full product traceability and compliance with international logistics standards. It requires no plate making, enabling on-demand marking and quick switching between different pallet specifications, reducing setup time and operational costs. Additionally, the inkjet system is easy to integrate into existing production lines, featuring low maintenance and stable performance for continuous, long-term operation.
Introduction | 1. The equipment is developed and produced by Loobjet Company, and mainly consists of high-speed digital inkjet system, UVLED curing system, negative pressure ink supply system, high-speed inkjet software system, etc. | |
2. It is suitable for high-speed inkjet printing of product name, number, logo, date, variable barcode, two-dimensional code, invisible anti-counterfeit code and other contents on the surface of various films, labels, metals and other materials. | ||
3. Use imported (Ricoh G5, Japan) high-speed and high-precision industrial piezoelectric nozzle. | ||
4. Use environment-friendly black LED UV ink for stable printing without stopping the machine. | ||
5. Configure UVLED UV curing lamp for curing treatment. | ||
6. It is optional to install an industrial vision online detection system to identify and detect the product name, number, QR code and other relevant information. | ||
7. The high-speed inkjet system can be installed on various intaglio printing machines, flexo printing machines, packaging lines and other equipment to realize online printing; The rewinder can also be used to roll to roll, single sheet feeding, cover and other offline methods. High speed, high precision and stable operation. | ||
8. Inkjet printing speed: 20-70 m/min, stable and reliable. | ||
9. The independently developed variable data printing software platform is easy to operate and ensures the safety and flexibility of data printing; Ports can be provided to connect with the data system. | ||
10. The surface and interior of the equipment shall be clean, orderly and tidy. |
Mainly Included Spare Parts
1. Software, （Danmajet ）
2. Computer, （Dell）
3. MH Ricoh G5 head.( Ricoh)
4. Controller cabinet,(TUTEN)
5. E-valve, Inks pump,（JYY）
6. Air supply pump,（JYY）
7. negative pressure system,（JYY）
8. LED lamp, LED （Korean）
9. Chiller cabinet （TEYU）
10. Cables,（LVLIAN）
11. Filters,（Pall）
12. Inks ,（Danmajet）
13. Cleaner,(Danmajet）
14. Inks pipe （Danmajet）
15. Sensor, （Panasonic）
16. Encoder, (Danmajet）
17. 24DC Relay, (CHIT）
18. Solenoid valve,(CHIT）
19. Clean room nap, (Danmajet）
20. Power supply, (MINGWEI）
21. Mainboard, (Danmajet）
22. Inks supply board, (Danmajet）
23. Steel Holders, (SY）
24. Printing unit auto up and down system, (Danmajet）
25. Non-stop inks alarm.(Loobjet）
26. Inks collector.(Loobjet）
