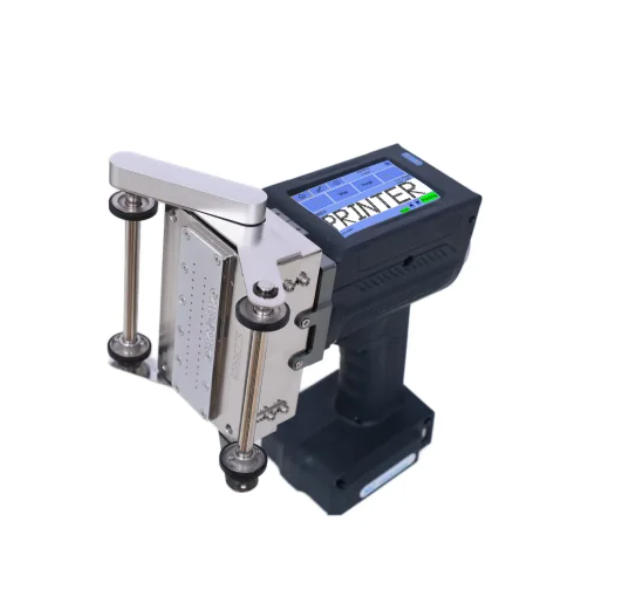

Large Format Portable Inkjet Printer Gun
Advantages of Handheld Inkjet Printers for Wide-Format Marking
Handheld inkjet printers are a flexible, efficient solution for wide-format marking, solving the limitations of fixed inkjet systems. They meet diverse needs in packaging, logistics, construction and manufacturing. Their portable design lets operators easily mark large or irregular products, no cumbersome positioning or heavy workpiece movement needed—greatly boosting operational flexibility and efficiency.
For wide-format marking, these printers deliver excellent performance with clear, high-contrast output on large surfaces. Equipped with advanced inkjet technology, they ensure consistent, precise marking across widths up to 100mm+, maintaining uniform clarity edge-to-edge. This is critical for large packaging boxes, building materials and industrial equipment applications.
Unlike traditional wide-format marking methods, handheld inkjet printers need no plate making or pre-adjustment, enabling on-demand marking and quick switches between content and formats. They support variable data (batch numbers, barcodes, QR codes, logos) with ink that offers strong adhesion, abrasion, water and UV resistance. Lightweight, easy to operate and low-maintenance, they work indoors and outdoors, making them ideal for businesses needing efficient, flexible, cost-effective wide-format marking.
Description
1.Development Trends
Compact & Lightweight: Enables prolonged operation without fatigue
Enhanced Functionality: Improved editing software allows easy operation even for personnel with elementary education level
Advanced Technology: Integrates cutting-edge practical technologies and concepts, combining data editing and printing into one identification system
2. Application Scenarios
Primarily used for large/oversized items, irregular shapes, diverse product types, frequently changing information, variable marking positions, and situations where mass production or assembly line operation is impossible or difficult. Typical applications include:
Heavy industry enterprises
On-site construction teams
Distributors without production lines
Logistics distribution centers

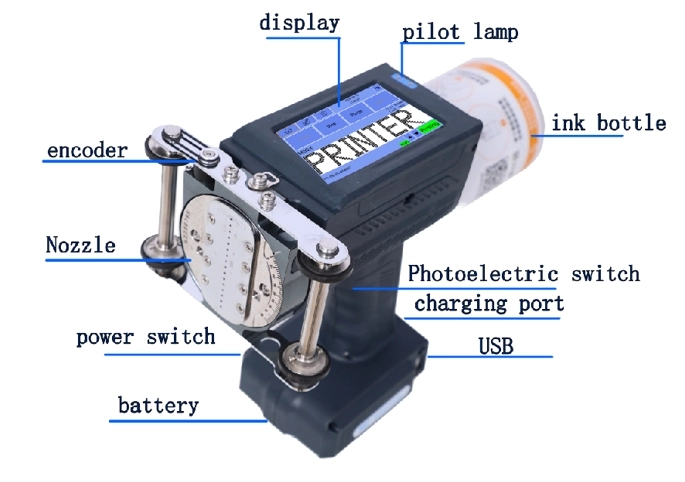

3. Features & Characteristics
Feature | Description |
Control System | Touch screen + high-performance embedded ARM chip core |
Printing Technology | UK Cambridge jetting technology + encoder system |
Operation Method | V-shaped wheel bearing for smooth surface movement |
Portability | Ultra-lightweight, independent lithium battery power |
Resolution | 200dpi for clear, standardized printing |
Ergonomics | Scientific structural design with high safety protection grade |
4. Technical Parameters
4.1 Working Principle
Utilizes PZT (semiconductor piezoelectric crystal) material with micro-channels. The mechanical effect generated by PZT's polarization under electric field enables ink droplet ejection.
4.2 Product Types
Type | Print Height |
Standard Handheld | 1mm-60mm |
Custom Large-head | 1mm-120mm |
4.3 Specifications (EBSA Model)
Print Head: Imported micro-dot technology
Printing Range: 360° omnidirectional printing
Display: Color touch screen (mouse compatible)
Font Support: Printing font, dot matrix, horizontal/vertical bar, micro-dot, anti-counterfeiting font
Function Support: Logo, barcode, pallet function, dual product counters
Ink Colors: Black, white, red, blue, green, yellow, invisible red
Power Supply: 24V/1.5A, <30W average consumption
Weight: 1.6kg (host + ink)
Packing box weight and size:9kgs,480*400*290mm

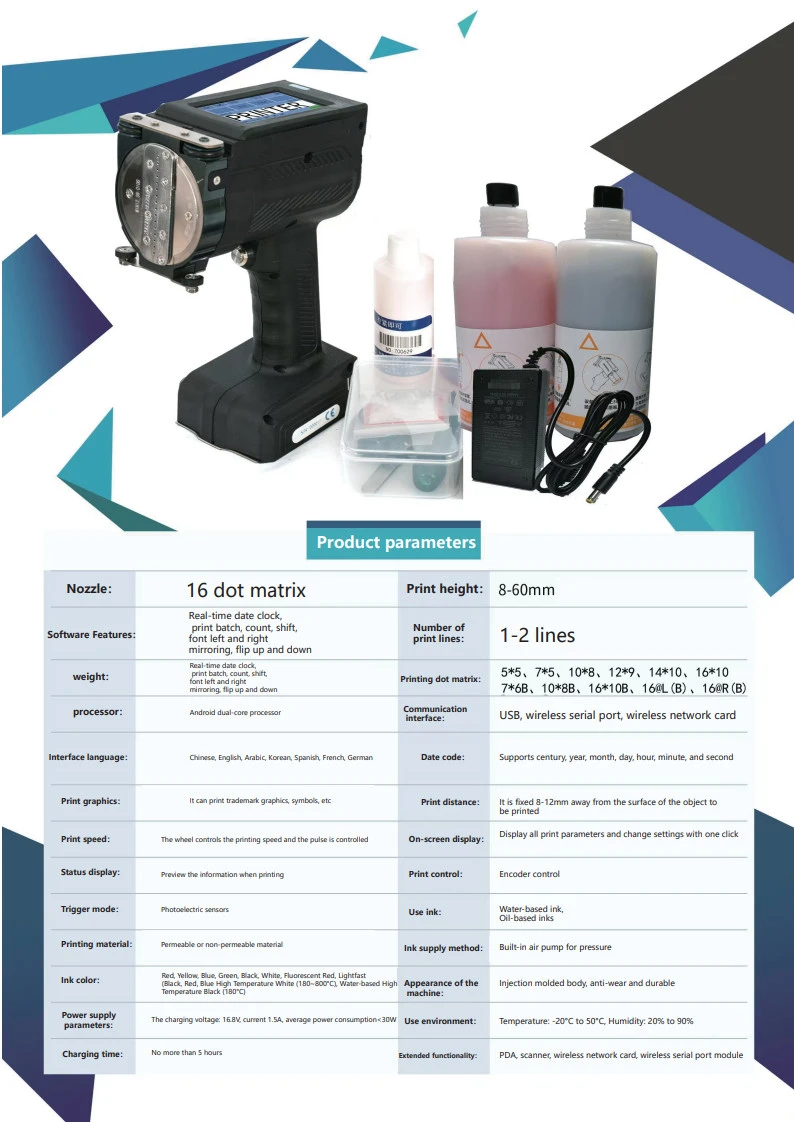

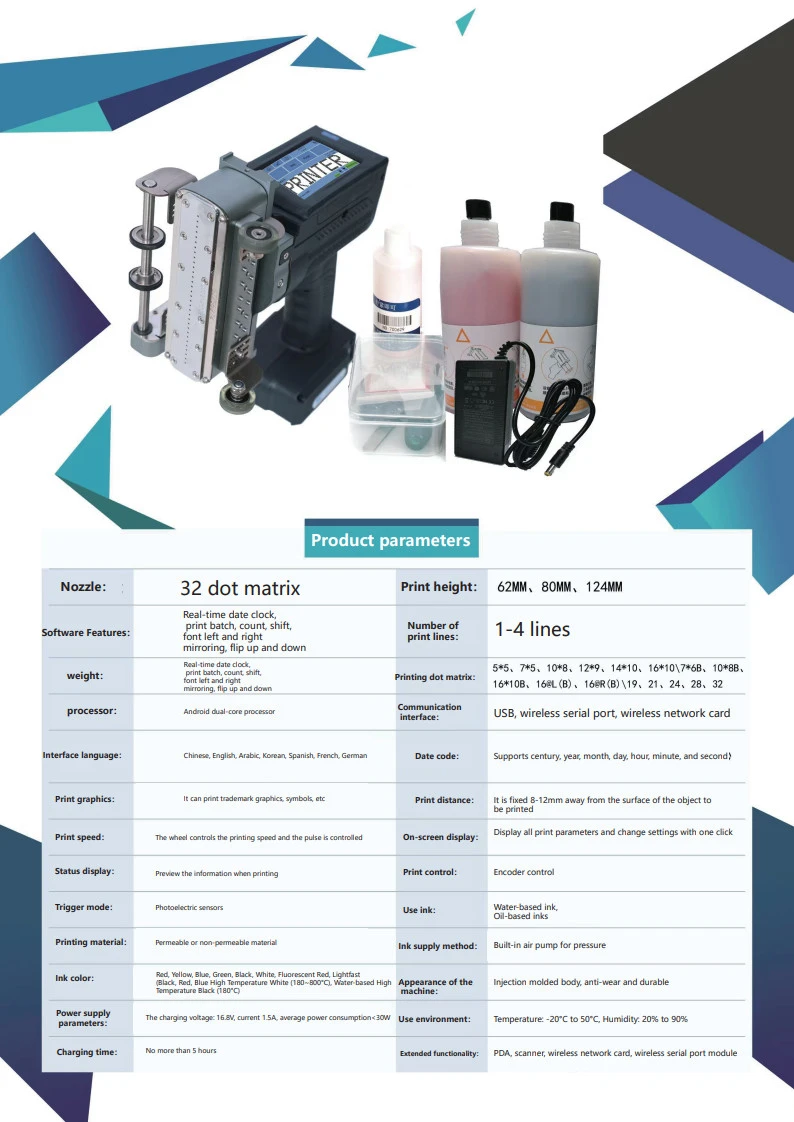

4.4 Performance Parameters
Parameter | Specification |
Print Height | 1-60mm / 1-120mm |
Print Speed | Determined by manual speed |
Print Lines | 1 line 16-dot font/graphics or 2 lines 7-dot font |
Dot Matrix | 32/16/14/12/10/7/5 dots |
Print Distance | 10-20mm (adjustable) |
Print Length | ≤2m |
Operating Temp | -20℃ to 50℃ |
Humidity | 30% to 70% |
Storage Capacity | 10,000 messages, 1GB |

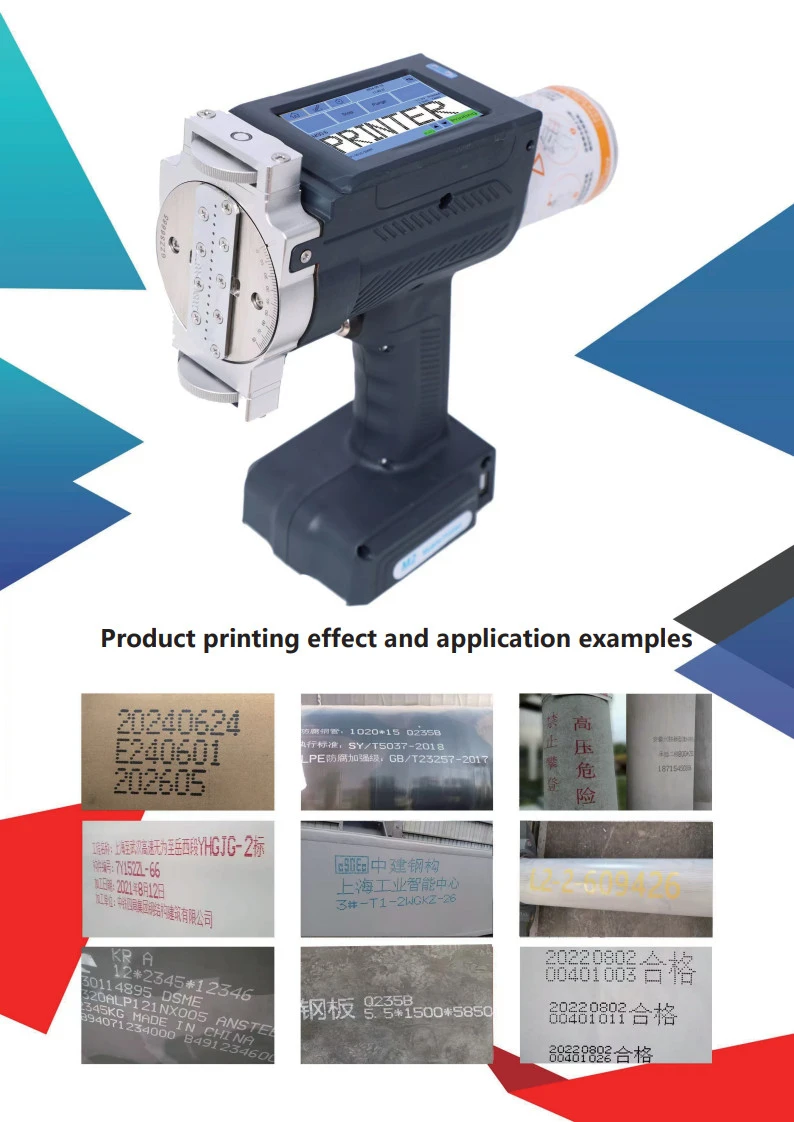

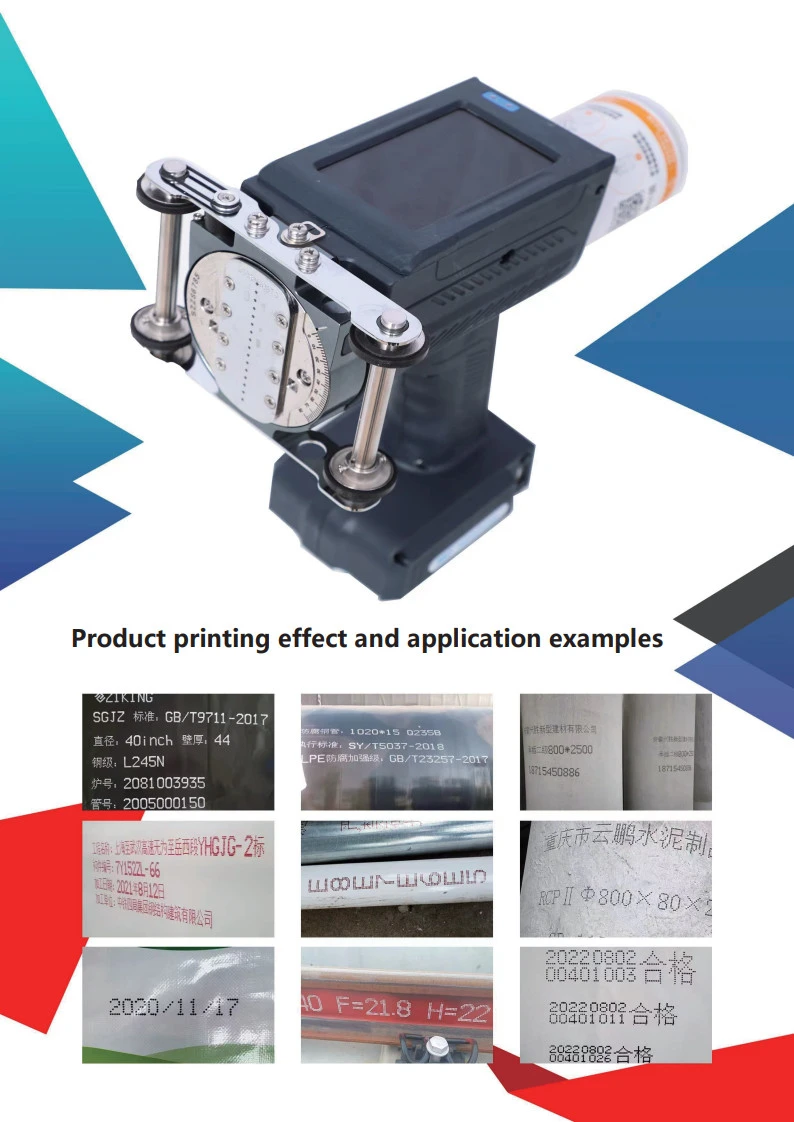

5. Industry Applications
Particularly suitable for:
Wood processing
Carton packaging printing industry (permeable materials)
Tobacco, alcohol, food, chemical, automotive products
6. Usage Precautions
Ink and solvent are corrosive - avoid skin/eye contact
Immediate 15-minute water clean required if contacted
Ensure adequate ventilation due to volatile components
Emergency medical attention needed if discomfort persists after cleaning
7. Additional Advantages
Maintenance-free operation
On-demand inkjet technology
Lower operating costs than continuous inkjet systems
≤5 hours charging time
No solvent required, environmentally friendly ink
