Technical Overview

Cylindrical rotary digital printing is a direct UV digital printing technology for cylindrical, conical, and other curved objects. Through the collaborative work of high-precision digital inkjet systems and automated rotating platforms, 360 ° seamless printing can be achieved without the plate making process required by traditional screen printing, greatly shortening the production cycle and breaking through the limitations of traditional processes.

Description

Core advantages

No need for plate making, quick response

Completely abandon the film plate making and screen printing process of silk screen printing, saving hours to days of plate making time.

Supports direct printing of digital files, taking only a few minutes from design to finished product, meeting the needs of small batch customization and urgent orders.

High speed production, doubled efficiency

Adopting multi nozzle parallel printing technology, the printing speed can reach 3-5 times that of traditional silk screen printing, and the single machine production capacity exceeds 2000+pieces/hour (view complexity).

The automated rotating platform accurately synchronizes the substrate speed and inkjet timing to ensure consistent printing at high speeds.

Full material compatibility, high-precision output

Suitable for surfaces made of various materials such as metal cans, plastic bottles, glass cups, ceramics, etc.

With a resolution of over 1200dpi, it accurately reproduces gradient colors, complex patterns, and small text, breaking through the bottleneck of screen printing color deviation.

Environmental protection and energy conservation, cost reduction and efficiency improvement

No waste of plate making consumables, high ink utilization rate, and a comprehensive cost reduction of 40% -60% compared to screen printing.

Water based/UV ink is optional and complies with RoHS and REACH environmental standards.

Application scenarios

✔  Food and beverage packaging: personalized label printing for cans, aluminum bottles, PET bottles, etc

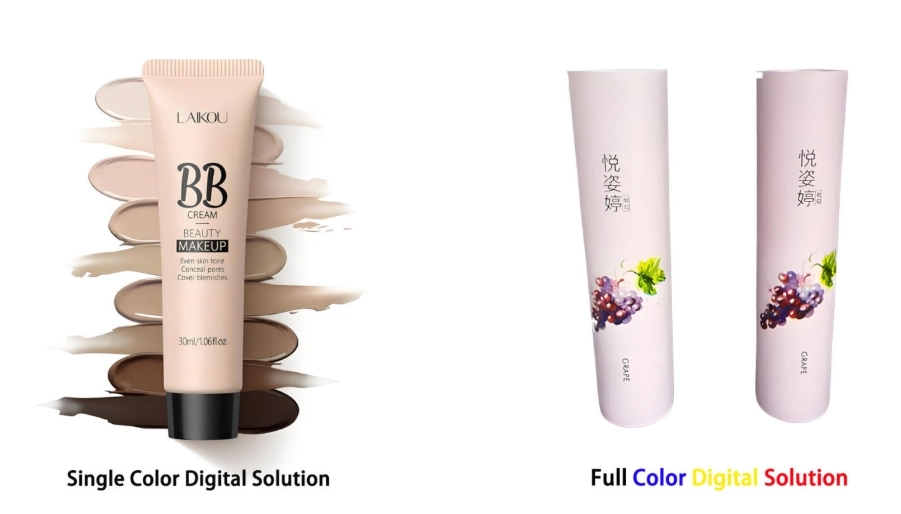

✔  Cosmetics packaging: high-end gradual effect of lipstick tube, perfume bottle and cream tank

✔  Industrial components: cylindrical markings and functional coatings for sensors, batteries, etc

✔  Promotional gifts: Customized water bottles, commemorative jars, and other small batch quick delivery items

Technical parameters

Printing diameter: Φ 20mm - Φ 300mm (customizable)

Printing length: 50mm-216mm

Ink type: UV curable ink (scratch resistant, instant dry)

Color mode: CMYK+White/Gloss
