UV Piezo Inkjet System-SP108
Kyocera KJ4A-RH Industrial UV Piezo Inkjet Solution
Featuring modular Kyocera KJ4A-RH printheads with 108mm print width, this system eliminates stitching gaps for highly readable GS1/QR codes in traceability applications.
Key Advantages:
Scalable modular design: Expandable to 64 independent print units for flexible integration
Production-line ready: Direct installation on packaging/printing lines (50-150m/min speeds)
Superior marking quality: 50kHz firing frequency ensures sharp variable data (batch codes, expiry dates)
Industrial reliability: 99.5% uptime with automatic nozzle maintenance
Technical Differentiation:
The extra-wide 108mm print array
✓ Reducing multi-head alignment errors
✓ Improving barcode first-read rates by 15%
✓ Enabling single-pass security pattern printing
Description
Kyocera KJ4A-RH Industrial Inkjet Printing Solution
Technical Overview:The system utilizes Kyocera's advanced KJ4A-RH printhead technology
Modular design with expandable configuration (up to 64 independent modules)
Exceptional 108mm print width for seamless printing without stitching gaps
High-frequency firing capability (up to 50kHz) enabling speeds up to 150m/min
Precision droplet control for superior print quality (300-1200dpi resolution)
Product Specifications

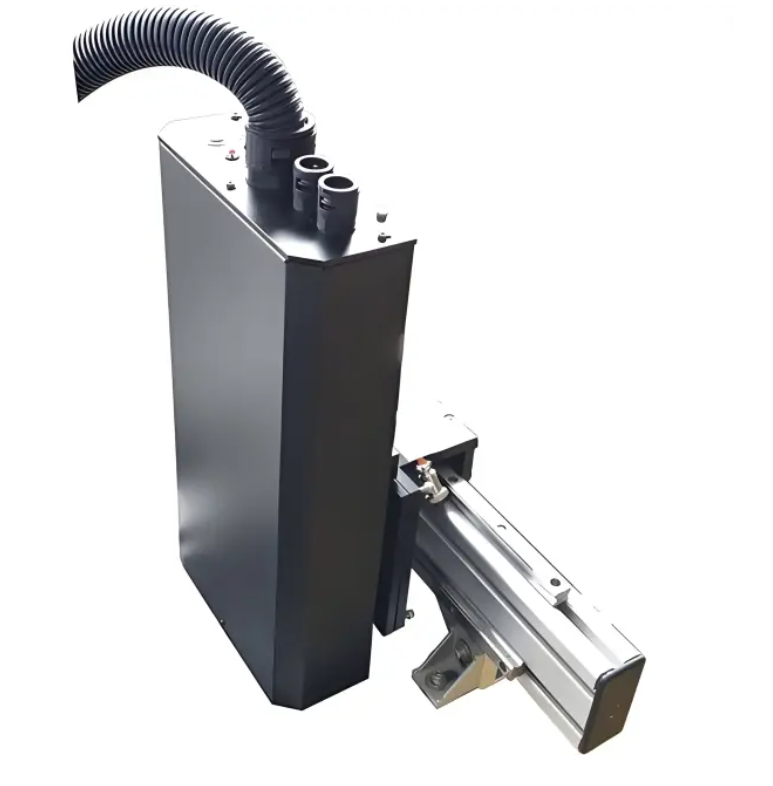

| Model NO. | UV Piezo Inkjet KY108-Separate | Printing Unit Size | 120*140*430mm |
| Technology | PIJ/Piezo Inkjet | Application Fields | Traceability codes,logos for films,labels,cards and etc. |
| Color Support | Monochrome | Real Time Data | Development port open |
| Printing Speed | 70-200m/min | Software | Independently developed |
| Nozzles | Kyocera 108 | Image support | Tiff,JPG,BMP |
| Resolution | 200-600DPI | Plasma System | Optional |
| Printing Media | Silk,Paper,PE,PVC,OPP,BOPP,Metal and etc. | Rip Software | Optional |
| Cooling System | Water Cooling System | Negative pressure system | PLC Board Control |
| Printing Width | 108mm/Nozzle | Codes Inspection System | Optional |
| Printing Length | 3m one trigger signal | Installation bracket | Standard 4080 European |
| UVLED Power | 400W | Origin | Shanghai, China |
| LED signal linkage | By sensor or encoder | Trademark | Danmajet |
| Inks | UV, water base inks with SGS | Startup interface | Can be customized |
| System support | W10 | Transport Package | Wooden Box |
| Printing Information | GS1 Codes,2D codes, Images, and etc. Variable Data | Cabinet Size | 600*600*1100mm |
| Printing Unit to controller | 5m | Data File Support | Image,PDF,CSV,TXT |
| Re-code check function | Yes | Production Capacity | 1000sets/Year |
| Ink tank Vol. | 2000ml | User Manual +Videos | Strong Online Support |
| Printing Unit Up-Down | Pneumatic automatic | Main Parts Warranty | 12 Month |
Printer Head Specifications
| Ink | UV |
| Maximum Drive Frequency (kHz) | 30 |
| Resolution | 600dpi x 600dpi |
| Print Speed (pL) | 76.2 |
| Minimum Drop Volume (pL) | 3 |
| Maximum Drop Volume (pL) | 14 |
| Nozzle Recirculation | No |
| Width × Length × Height (mm) | 200×30×69.4 |
| Number of Nozzles | 2656(2558) |
| Effective Print Width (mm) | 108.25 |
| Recommended Ink Viscosity (mPa*s) | 6.0~7.0 |
