Industrial KM1024i High droplet PIJ UV Piezo System

 10mm Stand-off Distance | GS1/QR Code Traceability | Piezo DOD Technology

 Core Advantages

 Exceptional print quality:

∙ Vertical resolution: 360DPI

∙ Horizontal resolution: 200-600DPI adjustable

 10mm non-contact printing: Maintains consistency on uneven surfaces

 Integrated production line compatibility: Synchronizes with flexo/offset/gravure systems.
. Good Performance for white inks printing,high gap high droplet high speed printing.

Description

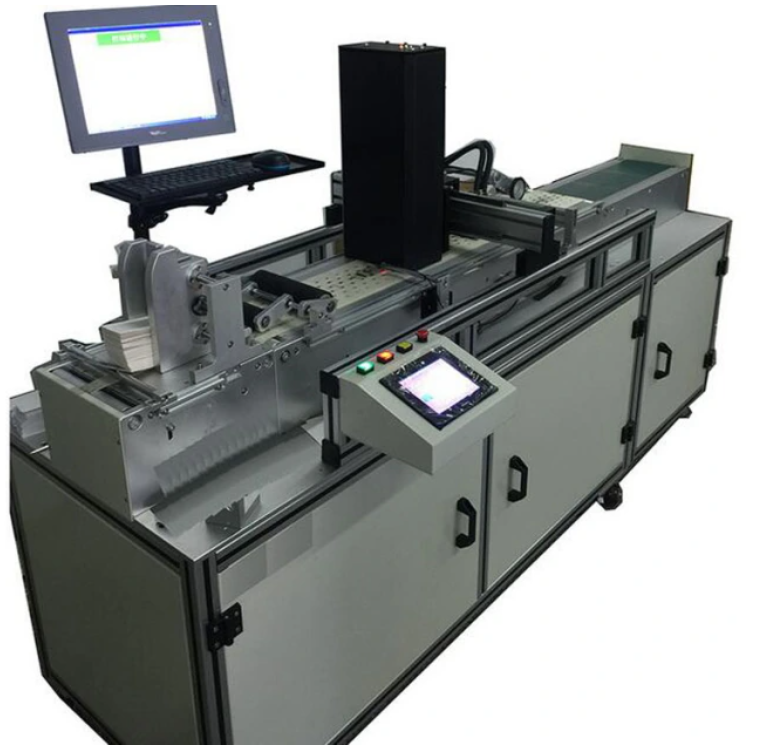

Industrial UV Inkjet Printing System

 10mm Stand-off Distance | GS1/QR Code Traceability | Piezo DOD Technology

1. Core Advantages

 Exceptional print quality:

∙ Vertical resolution: 360DPI

∙ Horizontal resolution: 200-600DPI adjustable

 10mm non-contact printing: Maintains consistency on uneven surfaces

 Integrated production line compatibility: Synchronizes with flexo/offset/gravure systems

2. Technical Specifications

 2.1 Precision Printing Performance

 Parameter Specification Speed Range20-50m/min

Ink Cost60% lower vs thermal transfer

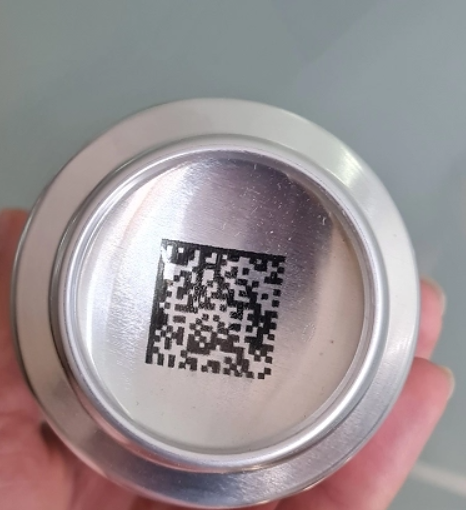

Print Content Text/1D&2D barcodes/GS1/Datamatrix，Logo digital printing and etc.

2.2 Advanced UV Curing System

Instant adhesion on multiple substrates

 Zero nozzle clogging (UV ink remains liquid in air)

3. Industrial Design Features

 European components:

∙ Imported web guide system

∙ Servo-controlled tension

 All-in-one process:

Unwinding/Sheet-fed → Printing → Curing → Inspection → Waste removal → Rewinding/Sheet Collecting

4. Maintenance & Reliability

 Industrial piezo printhead: 50,000+ operation hours

 Positive-pressure cleaning: <5min daily maintenance
